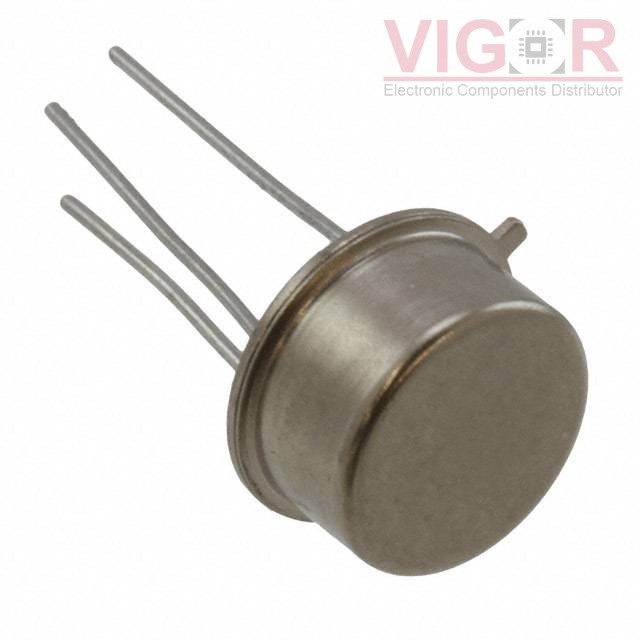

SG7905T-JAN

Part No :: SG7905T-JAN

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 4875367

Description: IC REG LINEAR -5V 1.5A TO39

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: SG7905T-JAN PDF

Country of origin: -

Date code: -

SG7905T-JAN Specifications

Type	Description
Series:	Military, MIL-STD-883
Package:	Tray
Part Status:	Active
Output Configuration:	Negative
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	-35V
Voltage - Output (Min/Fixed):	-5V
Voltage - Output (Max):	-
Voltage Dropout (Max):	2.3V @ 500mA
Current - Output:	1.5A
Current - Quiescent (Iq):	2.5 mA
Current - Supply (Max):	-
PSRR:	54dB (120Hz)
Control Features:	-
Protection Features:	Over Current, Over Temperature, Thermal Shutdown
Operating Temperature:	-55°C ~ 125°C (TA)
Mounting Type:	Through Hole
Package / Case:	TO-205AD, TO-39-3 Metal Can
Supplier Device Package:	TO-39

Alternative Products

Part Number	Manufacturer & Description	Compare
SG7912AT Match 100%	Roving Networks / Microchip Technology IC REG LINEAR -12V 1.5A TO39	SG7905T-JAN vs SG7912AT
SG7912T Match 100%	Roving Networks / Microchip Technology IC REG LINEAR -12V 1.5A TO39	SG7905T-JAN vs SG7912T
SG7915AT Match 100%	Roving Networks / Microchip Technology IC REG LINEAR -15V 1.5A TO39	SG7905T-JAN vs SG7915AT
SG7905T Match 100%	Roving Networks / Microchip Technology IC REG LINEAR -5V 1.5A TO39	SG7905T-JAN vs SG7905T
SG7915T Match 100%	Roving Networks / Microchip Technology IC REG LINEAR -15V 1.5A TO39	SG7905T-JAN vs SG7915T
SG7915AT-DESC Match 100%	Roving Networks / Microchip Technology IC REG LINEAR -15V 1.5A TO39	SG7905T-JAN vs SG7915AT-DESC
