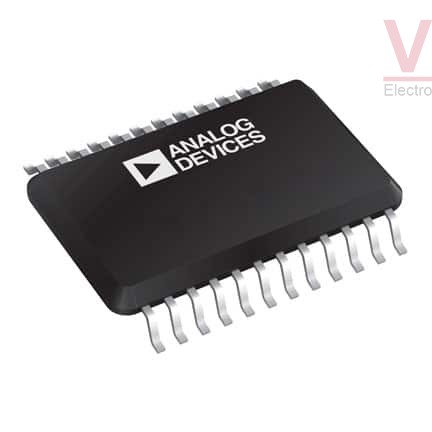

ADUM5411BRSZ-RL7

Part No :: ADUM5411BRSZ-RL7

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: DGTL ISO 2500VRMS 4CH GP 24SSOP

Catalog: Digital Isolators

DataSheet: ADUM5411BRSZ-RL7 PDF

Availability: 365 pieces

Current price of ADUM5411BRSZ-RL7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ADUM5411BRSZ-RL7 Specifications

Type	Description
Series:	iCoupler®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Technology:	Magnetic Coupling
Type:	General Purpose
Isolated Power:	Yes
Number of Channels:	4
Inputs - Side 1/Side 2:	3/1
Channel Type:	Unidirectional
Voltage - Isolation:	2500Vrms
Common Mode Transient Immunity (Min):	75kV/µs
Data Rate:	150Mbps
Propagation Delay tpLH / tpHL (Max):	13ns, 13ns
Pulse Width Distortion (Max):	3ns
Rise / Fall Time (Typ):	2.5ns, 2.5ns
Voltage - Supply:	1.7V ~ 5.5V
Operating Temperature:	-40°C ~ 105°C
Mounting Type:	Surface Mount
Package / Case:	24-SSOP (0.209", 5.30mm Width)
Supplier Device Package:	24-SSOP

Please confirm the specifications of the products when ordering.
