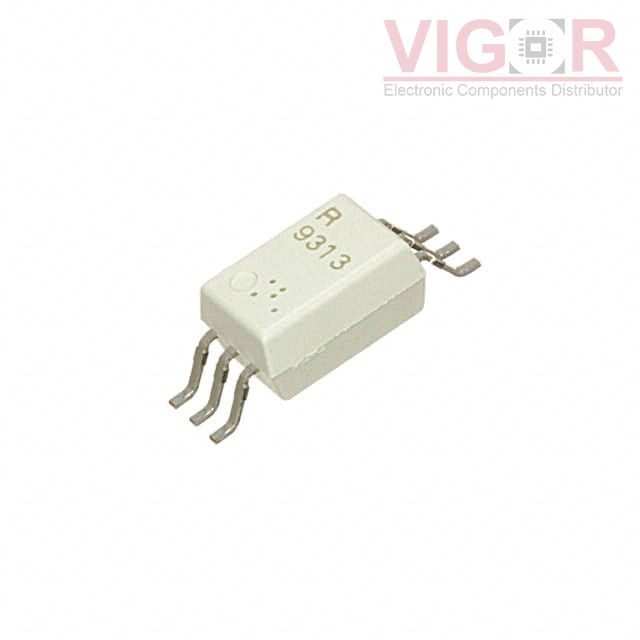

PS9306L-E3-AX

Part No :: PS9306L-E3-AX

Manufacturer: Renesas Electronics America

VIGOR # :: 4088023

Description: OPTOISO 5KV 1CH GATE DRVR 6SDIP

Catalog: Isolators - Gate Drivers

DataSheet: PS9306L-E3-AX PDF

Country of origin: -

Date code: -

PS9306L-E3-AX Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Technology:	Optical Coupling
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	25kV/µs
Propagation Delay tpLH / tpHL (Max):	400ns, 400ns
Pulse Width Distortion (Max):	250ns
Rise / Fall Time (Typ):	50ns, 50ns
Current - Output High, Low:	400mA, 400mA
Current - Peak Output:	600mA
Voltage - Forward (Vf) (Typ):	1.56V
Current - DC Forward (If) (Max):	25 mA
Voltage - Output Supply:	10V ~ 30V
Operating Temperature:	-40°C ~ 110°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.268", 6.80mm Width)
Supplier Device Package:	6-SDIP
Approval Agency:	CSA, SEMKO, UL
