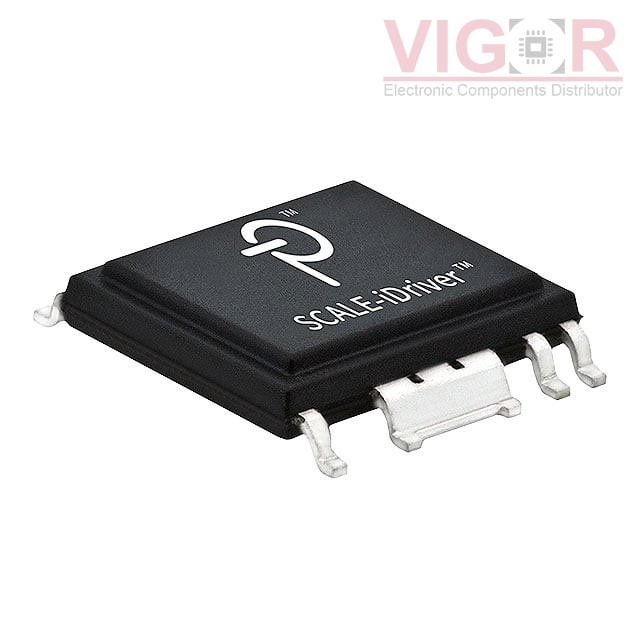

SID1181KQ

Part No :: SID1181KQ

Manufacturer: Power Integrations

VIGOR # :: 4088140

Description: 8A 750V ESOP IGBT

Catalog: Isolators - Gate Drivers

DataSheet: SID1181KQ PDF

Country of origin: -

Date code: -

SID1181KQ Specifications

Type	Description
Series:	SCALE-iDriver™
Package:	Tube
Part Status:	Active
Technology:	Capacitive Coupling
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	50kV/µs
Propagation Delay tpLH / tpHL (Max):	340ns, 330ns
Pulse Width Distortion (Max):	-
Rise / Fall Time (Typ):	465ns, 460ns
Current - Output High, Low:	3.6A, 4A
Current - Peak Output:	8A
Voltage - Forward (Vf) (Typ):	-
Current - DC Forward (If) (Max):	-
Voltage - Output Supply:	22V ~ 28V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package:	eSOP-R16B
Approval Agency:	CSA, UL, VDE
