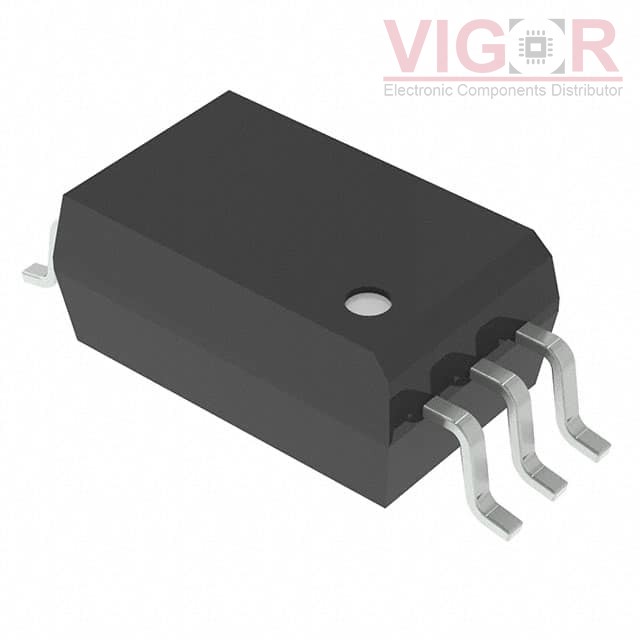

UCC23513DWYR

Part No :: UCC23513DWYR

Manufacturer: Texas Instruments

VIGOR # :: 4088157

Description: IC POWER MANAGEMENT

Catalog: Isolators - Gate Drivers

DataSheet: UCC23513DWYR PDF

Country of origin: -

Date code: -

UCC23513DWYR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Technology:	Optical Coupling
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	100kV/µs
Propagation Delay tpLH / tpHL (Max):	115ns, 115ns
Pulse Width Distortion (Max):	35ns
Rise / Fall Time (Typ):	28ns, 25ns (Max)
Current - Output High, Low:	4.5A, 5.3A
Current - Peak Output:	3A
Voltage - Forward (Vf) (Typ):	2V
Current - DC Forward (If) (Max):	25 mA
Voltage - Output Supply:	13.2V ~ 33V
Operating Temperature:	-40°C ~ 130°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	6-SOIC
Approval Agency:	CQC, CSA, TUV, UL, VDE

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 3

Shipped from

HK warehouse

Expected Shipping Date

May 19 - May 23 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.9700~~	~~$1.97~~

Current price of UCC23513DWYR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

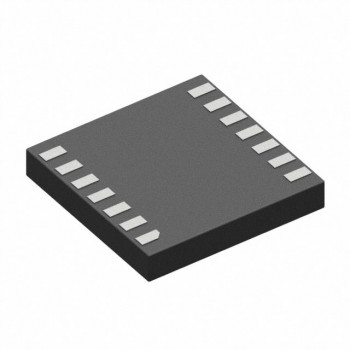

SI8234AB-D-IM1
