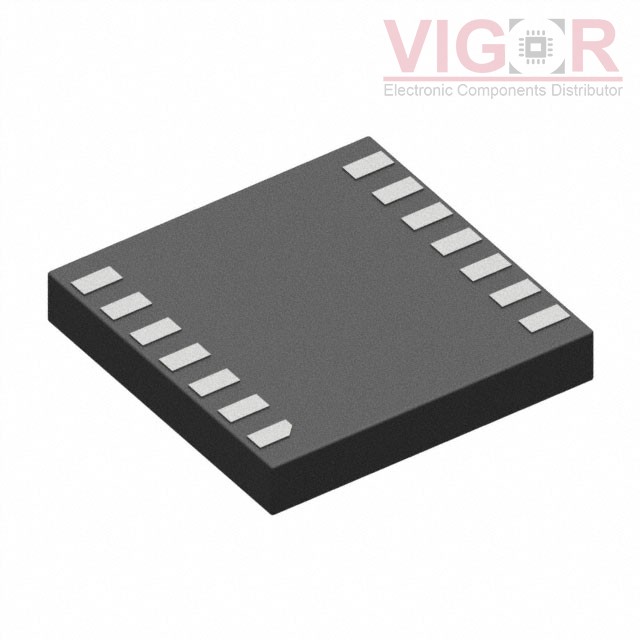

SI8234AB-D-IM1R

Part No :: SI8234AB-D-IM1R

Manufacturer: Silicon Labs

VIGOR # :: 4088223

Description: ISOLATED GATE DRIVER

Catalog: Isolators - Gate Drivers

DataSheet: SI8234AB-D-IM1R PDF

Country of origin: -

Date code: -

SI8234AB-D-IM1R Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)
Part Status:	Active
Technology:	Capacitive Coupling
Number of Channels:	2
Voltage - Isolation:	2500Vrms
Common Mode Transient Immunity (Min):	45kV/µs
Propagation Delay tpLH / tpHL (Max):	60ns, 60ns
Pulse Width Distortion (Max):	5.6ns
Rise / Fall Time (Typ):	12ns, 12ns
Current - Output High, Low:	2A, 4A
Current - Peak Output:	4A
Voltage - Forward (Vf) (Typ):	-
Current - DC Forward (If) (Max):	-
Voltage - Output Supply:	6.5V ~ 24V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	14-VDFN
Supplier Device Package:	14-QFN (5x5)
Approval Agency:	CQC, CSA, UR, VDE
