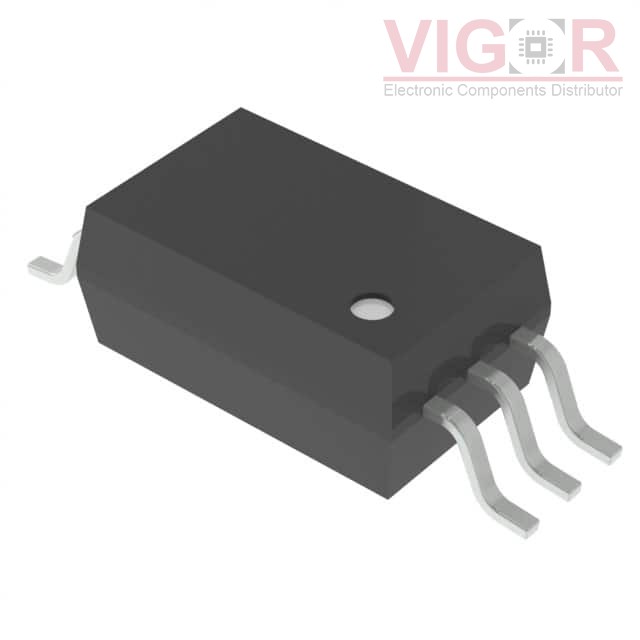

TLP5774(E

Part No :: TLP5774(E

Manufacturer: Toshiba Electronic Devices and Storage Corporation

VIGOR # :: 4088403

Description: GATE DRIVE COUPLER; LOW INPUT CU

Catalog: Isolators - Gate Drivers

DataSheet: TLP5774(E PDF

Country of origin: -

Date code: -

TLP5774(E Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Technology:	Optical Coupling
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	35kV/µs
Propagation Delay tpLH / tpHL (Max):	150ns, 150ns
Pulse Width Distortion (Max):	50ns
Rise / Fall Time (Typ):	15ns, 8ns
Current - Output High, Low:	1.2A, 1.2A
Current - Peak Output:	4A
Voltage - Forward (Vf) (Typ):	1.65V
Current - DC Forward (If) (Max):	8 mA
Voltage - Output Supply:	10V ~ 30V
Operating Temperature:	-40°C ~ 110°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	6-SO
Approval Agency:	CQC, cUR, UR, VDE
