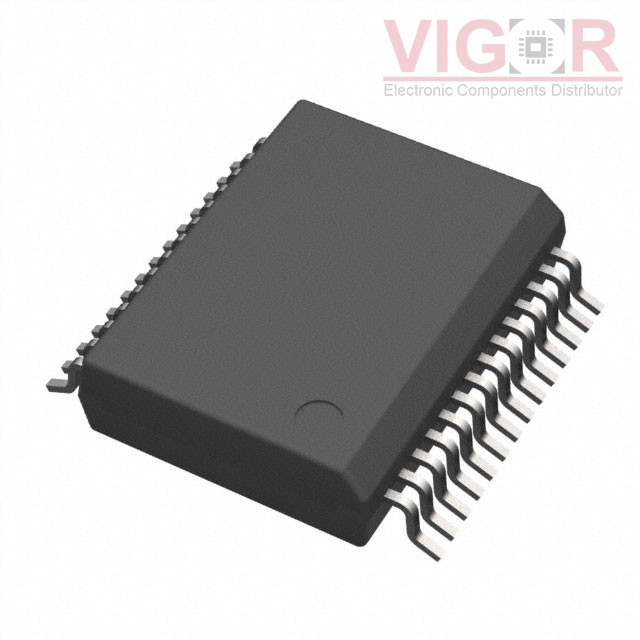

ADUM4138WBRNZ-RL

Part No :: ADUM4138WBRNZ-RL

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 4088560

Description: ISO IGBT GATE DRIVERW/FLYBACK CO

Catalog: Isolators - Gate Drivers

DataSheet: ADUM4138WBRNZ-RL PDF

Country of origin: -

Date code: -

ADUM4138WBRNZ-RL Specifications

Type	Description
Series:	Automotive
Package:	Tape & Reel (TR)
Part Status:	Active
Technology:	Magnetic Coupling
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	150kV/µs
Propagation Delay tpLH / tpHL (Max):	130ns, 121ns
Pulse Width Distortion (Max):	-
Rise / Fall Time (Typ):	95ns, 100ns
Current - Output High, Low:	-
Current - Peak Output:	6A
Voltage - Forward (Vf) (Typ):	-
Current - DC Forward (If) (Max):	-
Voltage - Output Supply:	12V ~ 25V
Operating Temperature:	-40°C ~ 150°C
Mounting Type:	Surface Mount
Package / Case:	28-BSSOP (0.295", 7.50mm Width)
Supplier Device Package:	28-SOIC_W_FP
Approval Agency:	CSA, UL, VDE
