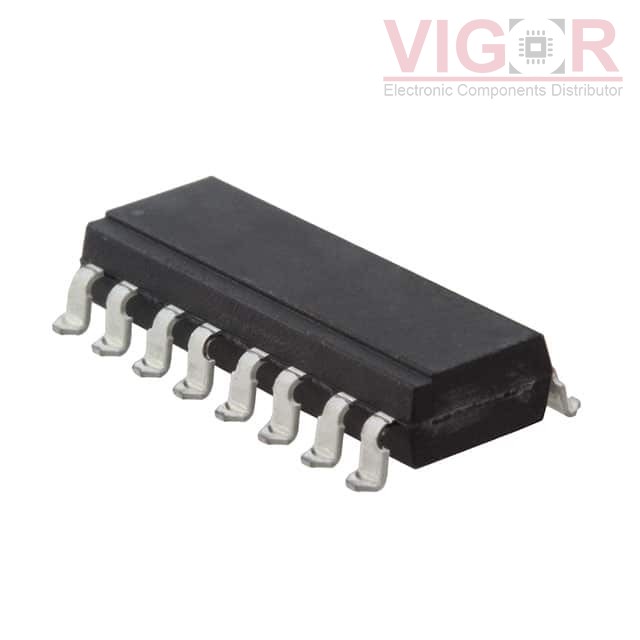

ACPL-5160-300

Part No :: ACPL-5160-300

Manufacturer: Broadcom

VIGOR # :: 4088600

Description: OPTOISO 1.5KV GATE DRVR 16SMDGW

Catalog: Isolators - Gate Drivers

DataSheet: ACPL-5160-300 PDF

Country of origin: -

Date code: -

ACPL-5160-300 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Technology:	Optical Coupling
Number of Channels:	1
Voltage - Isolation:	1500VDC
Common Mode Transient Immunity (Min):	9kV/µs
Propagation Delay tpLH / tpHL (Max):	500ns, 500ns
Pulse Width Distortion (Max):	300ns
Rise / Fall Time (Typ):	100ns, 100ns
Current - Output High, Low:	2A, 2A
Current - Peak Output:	2.5A
Voltage - Forward (Vf) (Typ):	-
Current - DC Forward (If) (Max):	-
Voltage - Output Supply:	15V ~ 30V
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	16-SMD, Gull Wing
Supplier Device Package:	16-SMD Gull Wing
Approval Agency:	-
