ACNV2601-300E

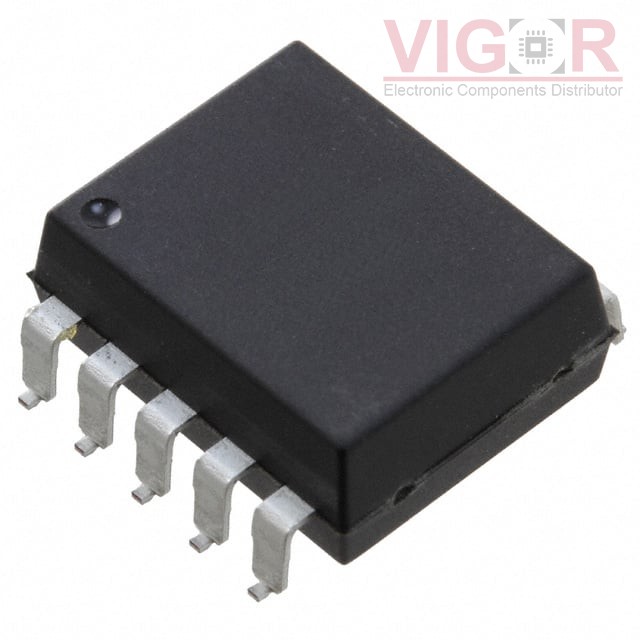

Part No :: ACNV2601-300E

Manufacturer: Broadcom

VIGOR # :: 4080824

Description: OPTOISO 7.5KV OPEN COLL 10DIP GW

Catalog: Optoisolators - Logic Output

DataSheet: ACNV2601-300E PDF

Country of origin: -

Date code: -

ACNV2601-300E Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	7500Vrms
Common Mode Transient Immunity (Min):	20kV/µs
Input Type:	DC
Output Type:	Open Collector, Schottky Clamped
Current - Output / Channel:	50 mA
Data Rate:	10MBd
Propagation Delay tpLH / tpHL (Max):	80ns, 80ns
Rise / Fall Time (Typ):	25ns, 10ns
Voltage - Forward (Vf) (Typ):	1.64V
Current - DC Forward (If) (Max):	20mA
Voltage - Supply:	4.5V ~ 5.5V
Operating Temperature:	-40°C ~ 105°C
Mounting Type:	Surface Mount
Package / Case:	10-SMD, Gull Wing
Supplier Device Package:	10-DIP Gull Wing
