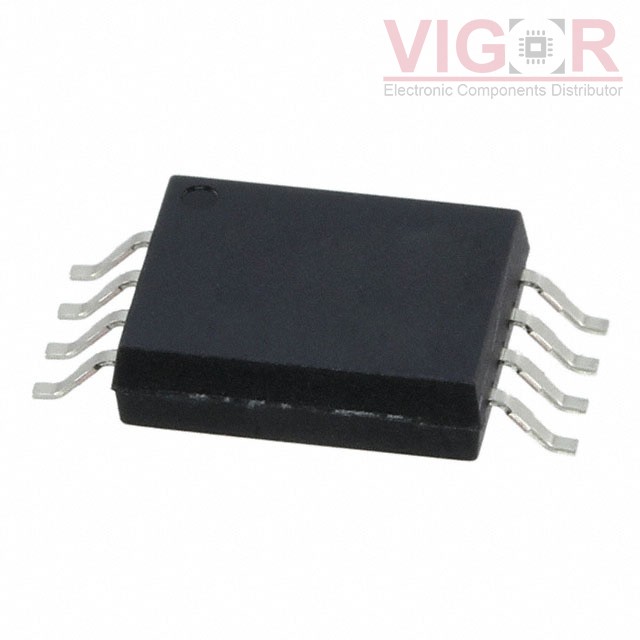

TLP2261(D4-TP4,E

Product image
Product thumb
Part No :

TLP2261(D4-TP4,E

Manufacturer
Toshiba Electronic Devices and Storage Corporation
VIGOR # :

4080842

Description
HIGH SPEED LOGIC OUTPUT OPTOCOUP
Catalog
Optoisolators - Logic Output
DataSheet
TLP2261(D4-TP4,E PDF
Country of origin
-
Date code
-
ads
TLP2261(D4-TP4,E Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Number of Channels:2
Inputs - Side 1/Side 2:2/0
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):20kV/µs
Input Type:DC
Output Type:Push-Pull, Totem Pole
Current - Output / Channel:10 mA
Data Rate:15MBd
Propagation Delay tpLH / tpHL (Max):80ns, 80ns
Rise / Fall Time (Typ):3ns, 3ns
Voltage - Forward (Vf) (Typ):1.5V
Current - DC Forward (If) (Max):10mA
Voltage - Supply:2.7V ~ 5.5V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.295", 7.50mm Width)
Supplier Device Package:8-SOIC
