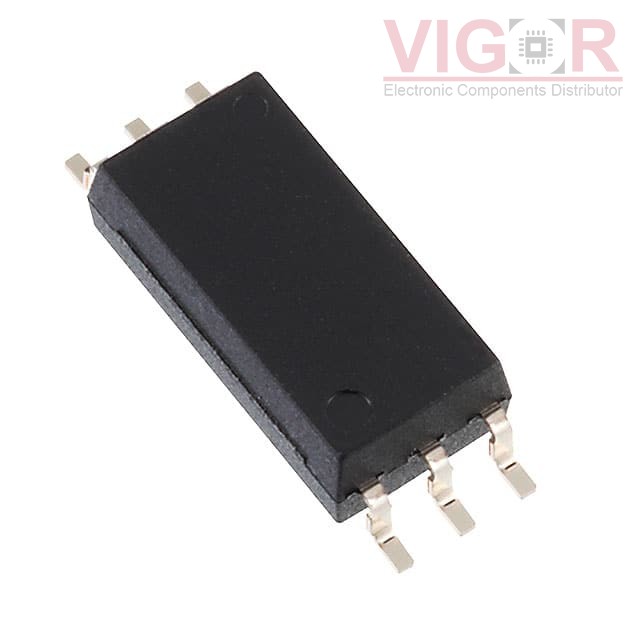

TLP2704(TP,E

Part No :: TLP2704(TP,E

Manufacturer: Toshiba Electronic Devices and Storage Corporation

VIGOR # :: 4080919

Description: HIGH SPEED LOGIC OUTPUT COUPLER;

Catalog: Optoisolators - Logic Output

DataSheet: TLP2704(TP,E PDF

Country of origin: -

Date code: -

TLP2704(TP,E Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	20kV/µs
Input Type:	DC
Output Type:	Open Collector
Current - Output / Channel:	15 mA
Data Rate:	-
Propagation Delay tpLH / tpHL (Max):	400ns, 550ns
Rise / Fall Time (Typ):	-
Voltage - Forward (Vf) (Typ):	1.55V
Current - DC Forward (If) (Max):	20mA
Voltage - Supply:	4.5V ~ 30V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	6-SO
