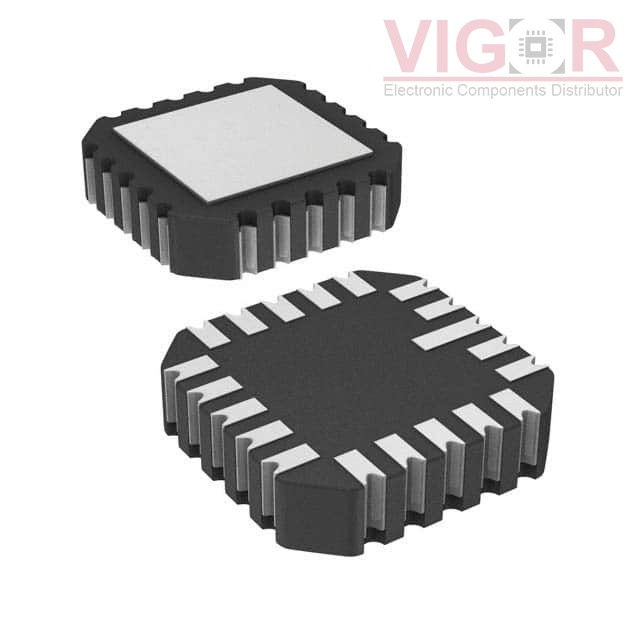

HCPL-6631

Part No :: HCPL-6631

Manufacturer: Broadcom

VIGOR # :: 4081233

Description: OPTOISO 1.5KV 2CH OPN COL 20LCCC

Catalog: Optoisolators - Logic Output

DataSheet: HCPL-6631 PDF

Country of origin: -

Date code: -

HCPL-6631 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Number of Channels:	2
Inputs - Side 1/Side 2:	2/0
Voltage - Isolation:	1500VDC
Common Mode Transient Immunity (Min):	1kV/µs
Input Type:	DC
Output Type:	Open Collector, Schottky Clamped
Current - Output / Channel:	25 mA
Data Rate:	10MBd
Propagation Delay tpLH / tpHL (Max):	100ns, 100ns
Rise / Fall Time (Typ):	35ns, 35ns
Voltage - Forward (Vf) (Typ):	1.5V
Current - DC Forward (If) (Max):	20mA
Voltage - Supply:	4.5V ~ 5.5V
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	20-CLCC
Supplier Device Package:	20-LCCC (8.89x8.89)
