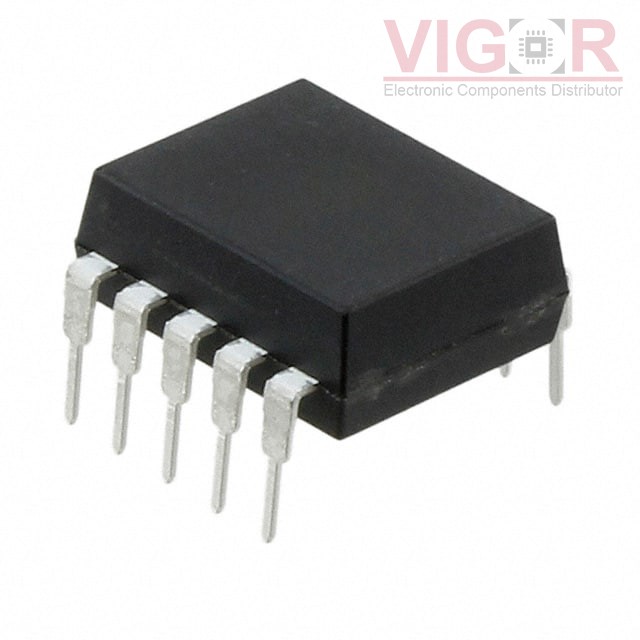

ACNV4506-000E

Part No :: ACNV4506-000E

Manufacturer: Broadcom

VIGOR # :: 4081744

Description: OPTOISO 7.5KV OPEN COLL 10DIP

Catalog: Optoisolators - Logic Output

DataSheet: ACNV4506-000E PDF

Country of origin: -

Date code: -

ACNV4506-000E Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	7500Vrms
Common Mode Transient Immunity (Min):	30kV/µs
Input Type:	DC
Output Type:	Open Collector, Schottky Clamped
Current - Output / Channel:	15 mA
Data Rate:	-
Propagation Delay tpLH / tpHL (Max):	550ns, 400ns
Rise / Fall Time (Typ):	-
Voltage - Forward (Vf) (Typ):	1.5V
Current - DC Forward (If) (Max):	25mA
Voltage - Supply:	4.5V ~ 30V
Operating Temperature:	-40°C ~ 105°C
Mounting Type:	Through Hole
Package / Case:	10-DIP (0.512", 13.01mm)
Supplier Device Package:	10-DIP
