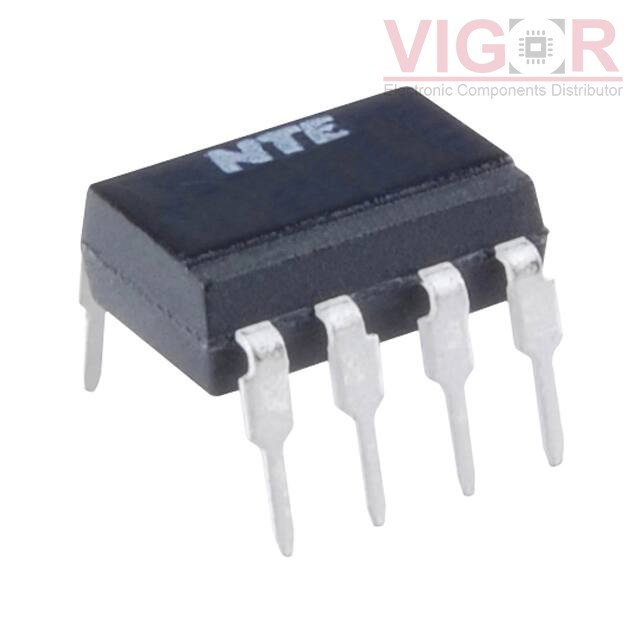

NTE3094

Part No :: NTE3094

Manufacturer: NTE Electronics, Inc.

Description: OPTOCOUPLER/DUAL TTL OUT

Catalog: Optoisolators - Logic Output

DataSheet: NTE3094 PDF

Availability: 40 pieces

Unit Price: ~~$17.43000~~

Current price of NTE3094 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NTE3094 Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Number of Channels:	2
Inputs - Side 1/Side 2:	2/0
Voltage - Isolation:	3000VDC
Common Mode Transient Immunity (Min):	500V/µs (Typ)
Input Type:	DC
Output Type:	Open Collector
Current - Output / Channel:	16 mA
Data Rate:	10Mbps
Propagation Delay tpLH / tpHL (Max):	75ns, 75ns
Rise / Fall Time (Typ):	25ns, 35ns
Voltage - Forward (Vf) (Typ):	1.5V
Current - DC Forward (If) (Max):	15mA
Voltage - Supply:	4.5V ~ 5.5V
Operating Temperature:	0°C ~ 70°C
Mounting Type:	Through Hole
Package / Case:	8-DIP (0.300", 7.62mm)
Supplier Device Package:	8-DIP
