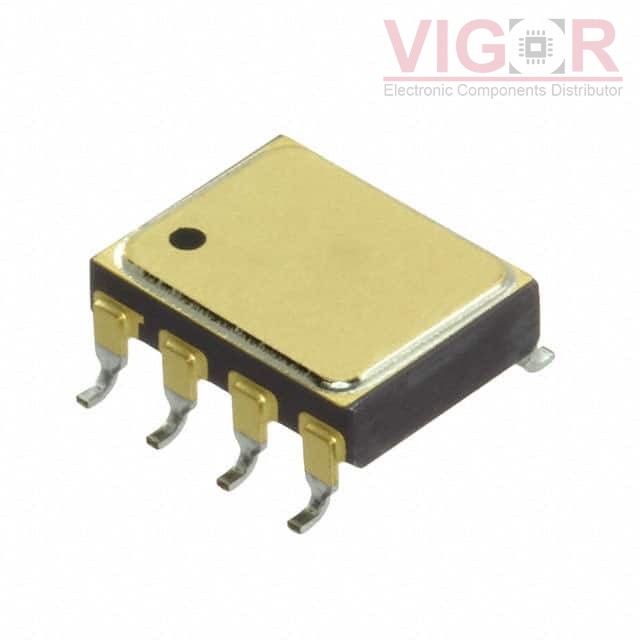

HCPL-5630#300

Product image
Product thumb
Part No :

HCPL-5630#300

Manufacturer
Broadcom
VIGOR # :

4081803

Description
OPTOISO 1.5KV OPEN COLL 8DIP GW
Catalog
Optoisolators - Logic Output
DataSheet
HCPL-5630#300 PDF
Country of origin
-
Date code
-
ads
HCPL-5630#300 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Number of Channels:2
Inputs - Side 1/Side 2:2/0
Voltage - Isolation:1500VDC
Common Mode Transient Immunity (Min):1kV/µs
Input Type:DC
Output Type:Open Collector, Schottky Clamped
Current - Output / Channel:25 mA
Data Rate:10MBd
Propagation Delay tpLH / tpHL (Max):100ns, 100ns
Rise / Fall Time (Typ):35ns, 35ns
Voltage - Forward (Vf) (Typ):1.5V
Current - DC Forward (If) (Max):20mA
Voltage - Supply:4.5V ~ 5.5V
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:8-CSMD, Gull Wing
Supplier Device Package:8-DIP Gull Wing
