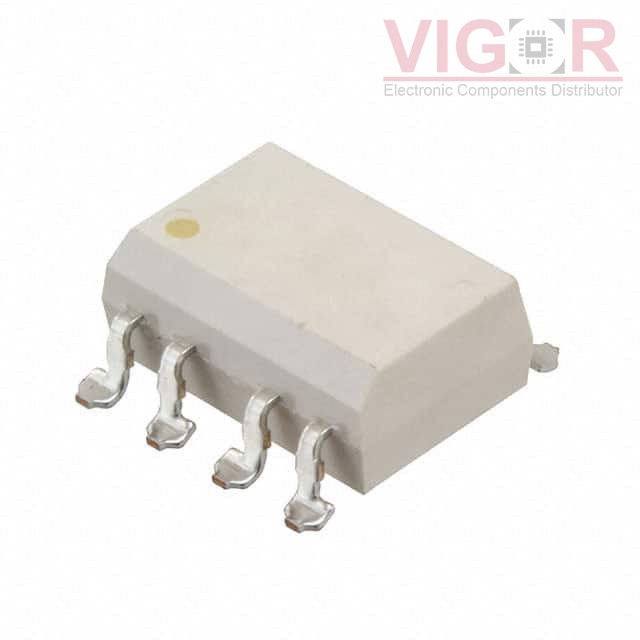

TLP2631(LF5,F)

Part No :: TLP2631(LF5,F)

Manufacturer: Toshiba Electronic Devices and Storage Corporation

VIGOR # :: 4978416

Description: X36 PB PHOTOCOUPLER SMD BULK JAP

Catalog: Optoisolators - Logic Output

DataSheet: TLP2631(LF5,F) PDF

Country of origin: -

Date code: -

TLP2631(LF5,F) Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Channels:	2
Inputs - Side 1/Side 2:	2/0
Voltage - Isolation:	2500Vrms
Common Mode Transient Immunity (Min):	1kV/µs
Input Type:	DC
Output Type:	Open Collector, Schottky Clamped
Current - Output / Channel:	16 mA
Data Rate:	10MBd
Propagation Delay tpLH / tpHL (Max):	75ns, 75ns
Rise / Fall Time (Typ):	30ns, 30ns
Voltage - Forward (Vf) (Typ):	1.65V
Current - DC Forward (If) (Max):	20mA
Voltage - Supply:	4.5V ~ 5.5V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	8-SMD, Gull Wing
Supplier Device Package:	8-SMD
