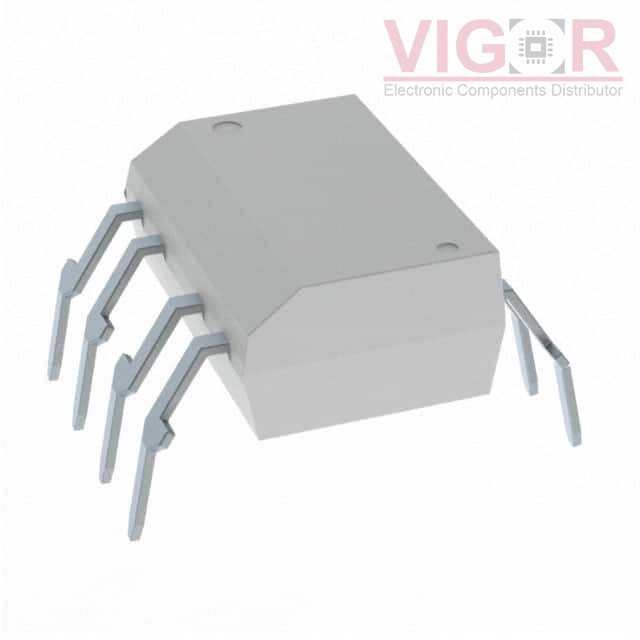

TLP250HF(D4,F)

Part No :: TLP250HF(D4,F)

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: OPTOCOUPLER 8DIP

Catalog: Optoisolators - Logic Output

DataSheet: TLP250HF(D4,F) PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of TLP250HF(D4,F) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TLP250HF(D4,F) Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	3750Vrms
Common Mode Transient Immunity (Min):	40kV/µs
Input Type:	DC
Output Type:	Push-Pull, Totem Pole
Current - Output / Channel:	2 A
Data Rate:	-
Propagation Delay tpLH / tpHL (Max):	500ns, 500ns
Rise / Fall Time (Typ):	50ns, 50ns
Voltage - Forward (Vf) (Typ):	1.57V
Current - DC Forward (If) (Max):	5mA
Voltage - Supply:	10V ~ 30V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	8-DIP (0.400", 10.16mm)
Supplier Device Package:	8-DIP
