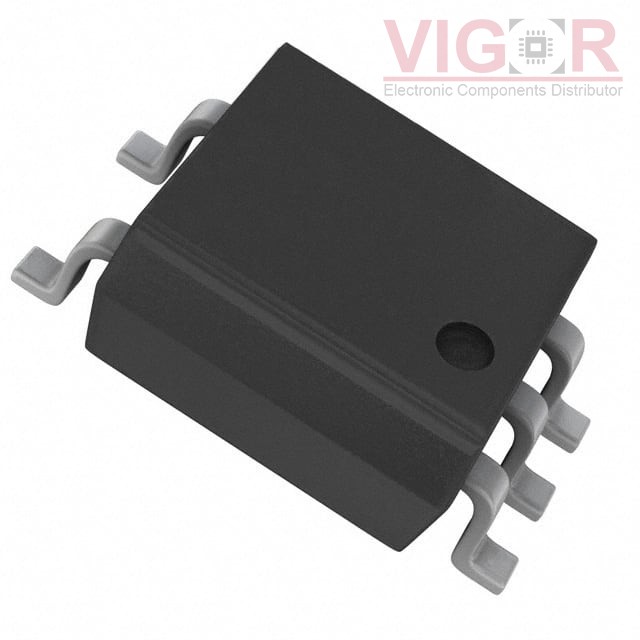

TLP105(F)

Part No :: TLP105(F)

Manufacturer: Toshiba Electronic Devices and Storage Corporation

VIGOR # :: 4978452

Description: OPTOISO 3.75KV PSH PULL 6MFSOP-5

Catalog: Optoisolators - Logic Output

DataSheet: TLP105(F) PDF

Country of origin: -

Date code: -

TLP105(F) Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	3750Vrms
Common Mode Transient Immunity (Min):	10kV/µs
Input Type:	DC
Output Type:	Push-Pull, Totem Pole
Current - Output / Channel:	25 mA
Data Rate:	5Mbps
Propagation Delay tpLH / tpHL (Max):	250ns, 250ns
Rise / Fall Time (Typ):	30ns, 30ns
Voltage - Forward (Vf) (Typ):	1.57V
Current - DC Forward (If) (Max):	20mA
Voltage - Supply:	4.5V ~ 20V
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package:	6-MFSOP, 5 Lead
