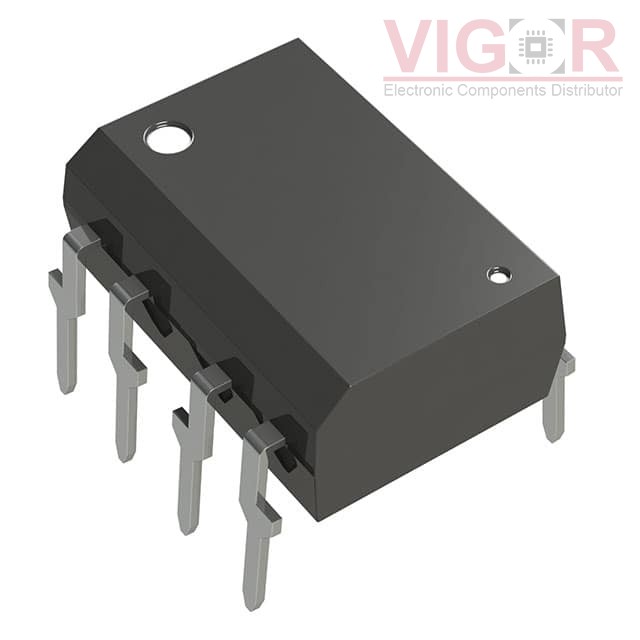

TLP2630(F)

Part No :: TLP2630(F)

Manufacturer: Toshiba Electronic Devices and Storage Corporation

VIGOR # :: 4978747

Description: OPTOISO 2.5KV 2CH OPEN COLL 8DIP

Catalog: Optoisolators - Logic Output

DataSheet: TLP2630(F) PDF

Country of origin: -

Date code: -

TLP2630(F) Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Channels:	2
Inputs - Side 1/Side 2:	2/0
Voltage - Isolation:	2500Vrms
Common Mode Transient Immunity (Min):	200V/µs, 500V/µs (Typ)
Input Type:	DC
Output Type:	Open Collector, Schottky Clamped
Current - Output / Channel:	16 mA
Data Rate:	10MBd
Propagation Delay tpLH / tpHL (Max):	75ns, 75ns
Rise / Fall Time (Typ):	30ns, 30ns
Voltage - Forward (Vf) (Typ):	1.65V
Current - DC Forward (If) (Max):	20mA
Voltage - Supply:	4.5V ~ 5.5V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	8-DIP (0.300", 7.62mm)
Supplier Device Package:	8-DIP
