H11AA814W

H11AA814W

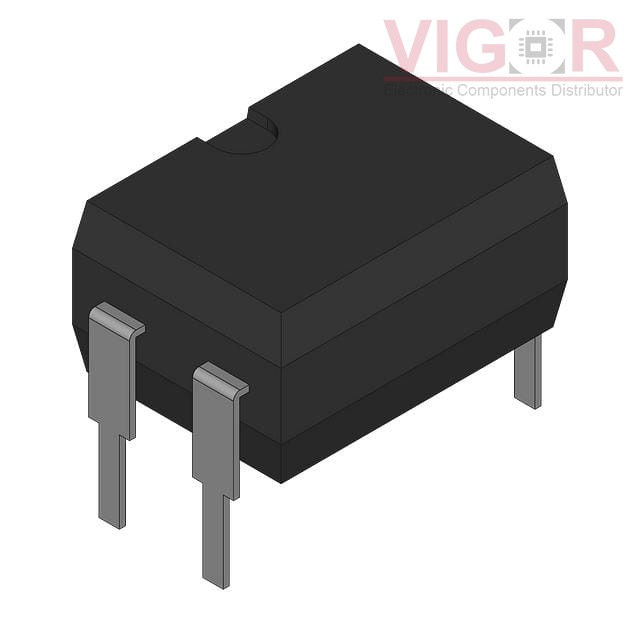

Image is for reference,
please contact us to get the real picture

Part No :

H11AA814W

Manufacturer
VIGOR
Description
AC IN-DARLINGTON OUT OPTOCOUPLER
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Sep 29 - Oct 03 2025
DataSheet
H11AA814W PDF
Availability
2300 pieces
Unit Price
$0.09000

Current price of H11AA814W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H11AA814W Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Number of Channels:1
Voltage - Isolation:5300Vrms
Current Transfer Ratio (Min):20% @ 1mA
Current Transfer Ratio (Max):300% @ 1mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):2.4µs, 2.4µs
Input Type:AC, DC
Output Type:Transistor
Voltage - Output (Max):70V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):200mV
Operating Temperature:-55°C ~ 100°C
Mounting Type:Through Hole
Package / Case:4-DIP (0.400", 10.16mm)
Supplier Device Package:4-DIP
