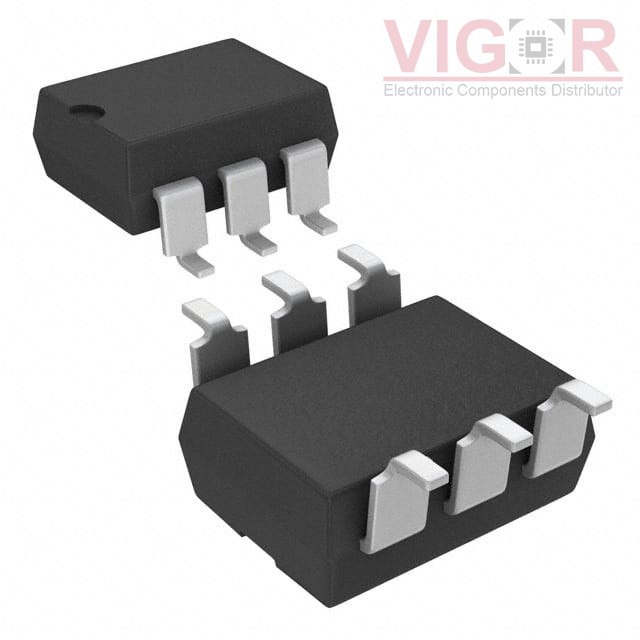

LDA100STR

Part No :: LDA100STR

Manufacturer: Wickmann / Littelfuse

Description: OPTOISO 3.75KV TRANS W/BASE 6SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: LDA100STR PDF

Availability: 26 pieces

Unit Price: ~~$1.21000~~

Current price of LDA100STR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LDA100STR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	3750Vrms
Current Transfer Ratio (Min):	33% @ 1mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	7µs, 20µs
Rise / Fall Time (Typ):	-
Input Type:	AC, DC
Output Type:	Transistor with Base
Voltage - Output (Max):	30V
Current - Output / Channel:	-
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	1 mA
Vce Saturation (Max):	500mV
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	6-SMD, Gull Wing
Supplier Device Package:	6-SMD

Please confirm the specifications of the products when ordering.
