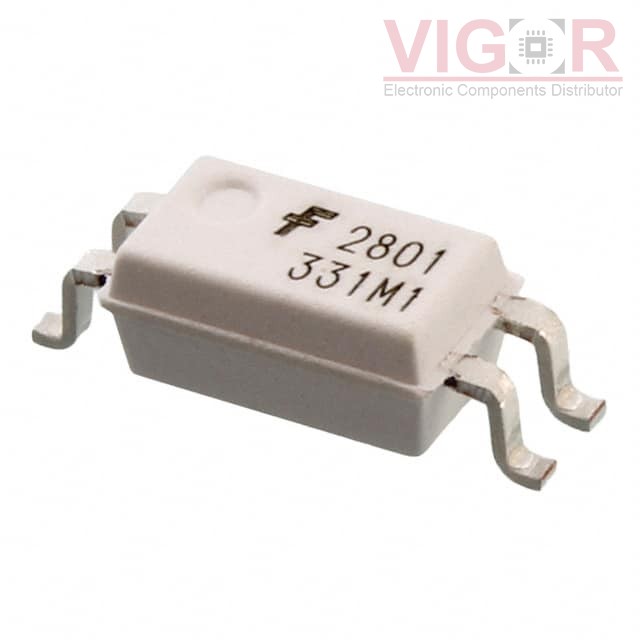

HMHA2801

Part No :: HMHA2801

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: OPTOISO 3.75KV TRANSISTOR 4SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: HMHA2801 PDF

Availability: 2955 pieces

Unit Price: ~~$0.61000~~

Current price of HMHA2801 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HMHA2801 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	3750Vrms
Current Transfer Ratio (Min):	80% @ 5mA
Current Transfer Ratio (Max):	600% @ 5mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	3µs, 3µs
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	80V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.3V (Max)
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	4-SOIC (0.173", 4.40mm Width)
Supplier Device Package:	4-Mini-Flat
