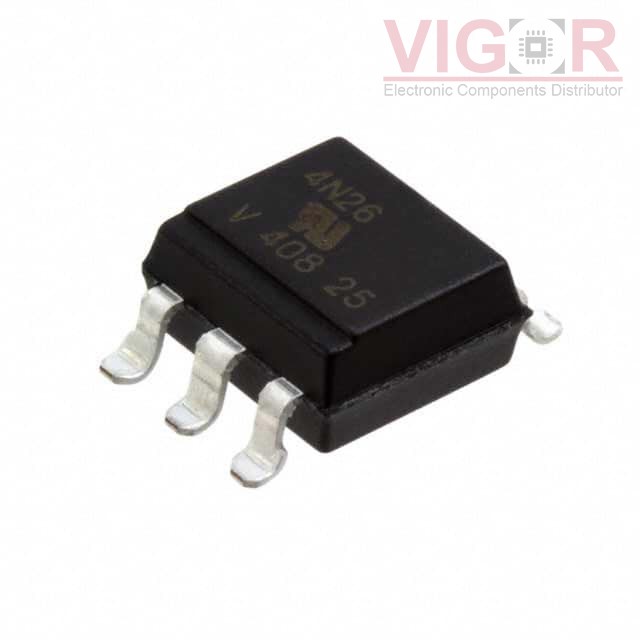

4N26-X009T

Part No :: 4N26-X009T

Manufacturer: Vishay / Semiconductor - Opto Division

Description: OPTOISO 5KV TRANS W/BASE 6SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: 4N26-X009T PDF

Availability: 942 pieces

Unit Price: ~~$0.65000~~

Current price of 4N26-X009T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

4N26-X009T Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	20% @ 10mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	2µs, 2µs
Input Type:	DC
Output Type:	Transistor with Base
Voltage - Output (Max):	70V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.36V
Current - DC Forward (If) (Max):	60 mA
Vce Saturation (Max):	500mV
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	6-SMD, Gull Wing
Supplier Device Package:	6-SMD
