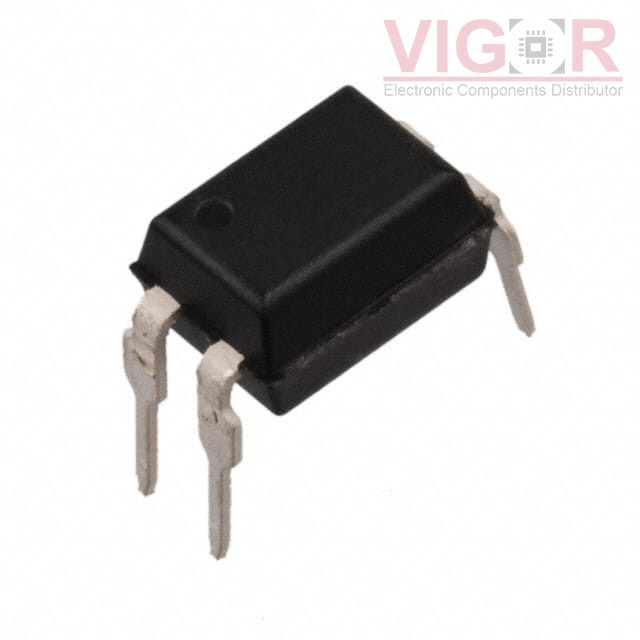

PS2505-1X

Part No :: PS2505-1X

Manufacturer: Isocom Components

Description: OPTOISO 5.3KV TRANS 4DIP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: PS2505-1X PDF

Availability: 3015 pieces

Unit Price: ~~$0.63000~~

Current price of PS2505-1X is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PS2505-1X Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5300Vrms
Current Transfer Ratio (Min):	80% @ 5mA
Current Transfer Ratio (Max):	600% @ 5mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	4µs, 3µs
Input Type:	AC, DC
Output Type:	Transistor
Voltage - Output (Max):	80V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-30°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	4-DIP (0.300", 7.62mm)
Supplier Device Package:	4-DIP
