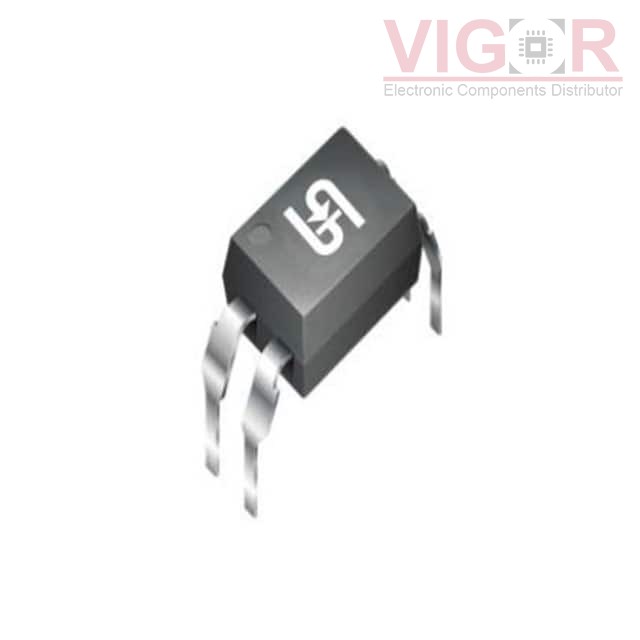

TPC816MC C9G

Part No :: TPC816MC C9G

Manufacturer: TSC (Taiwan Semiconductor)

Description: OPTOISO 5KV TRANS DIP-4M

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: TPC816MC C9G PDF

Availability: 0 pieces

Unit Price: ~~$0.09196~~

Current price of TPC816MC C9G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TPC816MC C9G Specifications

Type	Description
Series:	TPC816
Package:	Tube
Part Status:	Last Time Buy
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	200% @ 5mA
Current Transfer Ratio (Max):	400% @ 5mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	4µs, 3µs
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	70V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	200mV
Operating Temperature:	-30°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	4-DIP (0.400", 10.16mm)
Supplier Device Package:	4-DIP

Please confirm the specifications of the products when ordering.
