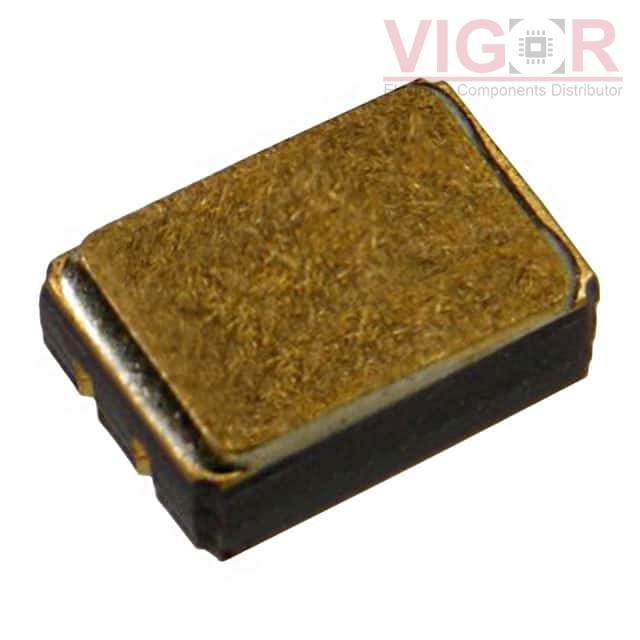

HCC242

Part No :: HCC242

Manufacturer: TT Electronics / Optek Technology

Description: OPTOISOLATOR 1KV TRANS 4-CLCC

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: HCC242 PDF

Availability: 0 pieces

Unit Price: ~~$23.06717~~

Current price of HCC242 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HCC242 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	1000VDC
Current Transfer Ratio (Min):	100% @ 10mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	20µs, 20µs
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	30V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.5V (Max)
Current - DC Forward (If) (Max):	40 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	4-SMD, No Lead
Supplier Device Package:	4-CLCC (5.59x3.81)

Please confirm the specifications of the products when ordering.
