NTE3086

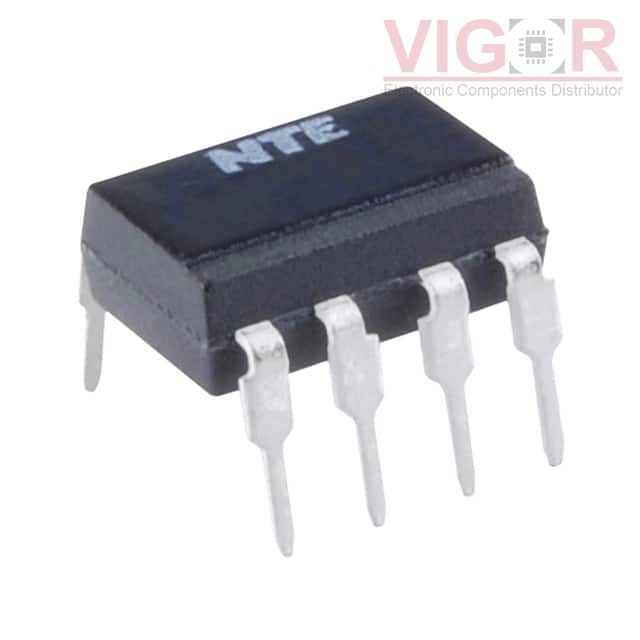

Image is for reference,
please contact us to get the real picture

Part No :: NTE3086

Manufacturer: NTE Electronics, Inc.

Description: OPTOISOLATOR/TRANS

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: NTE3086 PDF

Availability: 121 pieces

Unit Price: ~~$5.23000~~

Current price of NTE3086 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NTE3086 Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Number of Channels:	2
Voltage - Isolation:	1500Vrms
Current Transfer Ratio (Min):	20% @ 10mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	5s, 25s
Rise / Fall Time (Typ):	15s, 2.4s
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	30V
Current - Output / Channel:	-
Voltage - Forward (Vf) (Typ):	1.1V
Current - DC Forward (If) (Max):	60 mA
Vce Saturation (Max):	400mV
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	8-DIP (0.300", 7.62mm)
Supplier Device Package:	8-DIP
