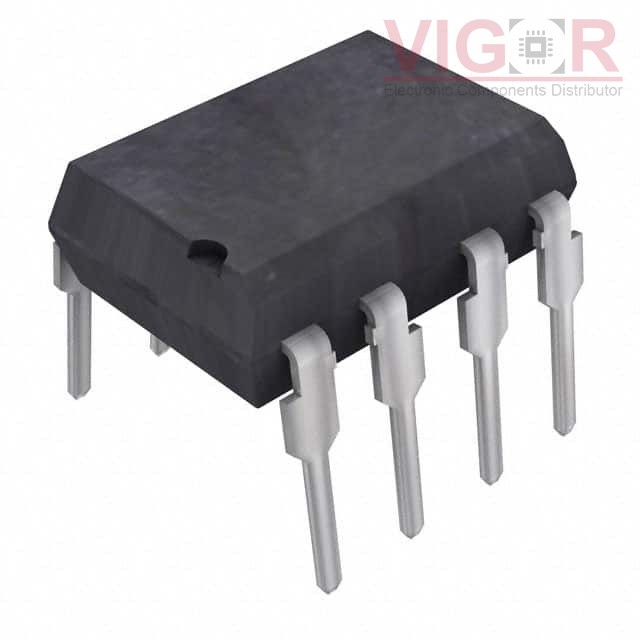

SFH6345-X001

Part No :: SFH6345-X001

Manufacturer: Vishay / Semiconductor - Opto Division

Description: OPTOISOLATOR 5.3KV TRANS 8DIP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: SFH6345-X001 PDF

Availability: 0 pieces

Unit Price: ~~$1.82000~~

Current price of SFH6345-X001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SFH6345-X001 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5300Vrms
Current Transfer Ratio (Min):	19% @ 16mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	300ns, 300ns
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	25V
Current - Output / Channel:	8mA
Voltage - Forward (Vf) (Typ):	1.33V
Current - DC Forward (If) (Max):	25 mA
Vce Saturation (Max):	400mV
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	8-DIP (0.300", 7.62mm)
Supplier Device Package:	8-DIP
