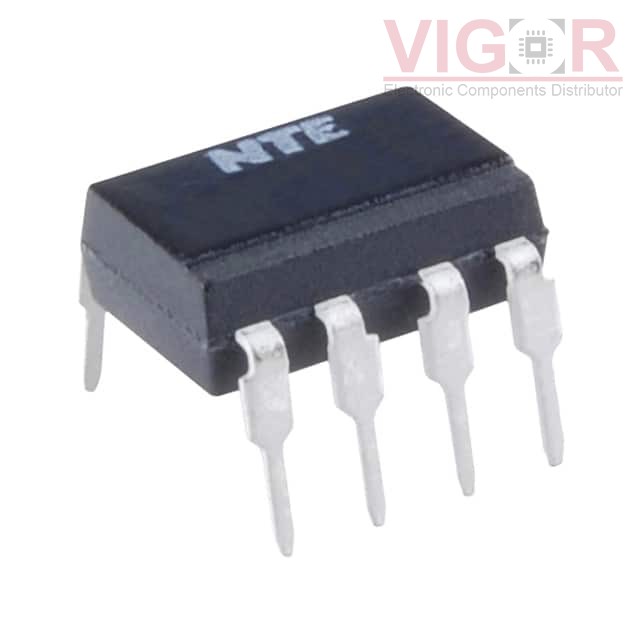

NTE3093

Part No :: NTE3093

Manufacturer: NTE Electronics, Inc.

Description: OPTOCOUPLER/DARLINGTON

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: NTE3093 PDF

Availability: 5 pieces

Unit Price: ~~$5.29000~~

Current price of NTE3093 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NTE3093 Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	-
Current Transfer Ratio (Min):	500% @ 1.6mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	5µs, 5µs
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Darlington
Voltage - Output (Max):	18V
Current - Output / Channel:	60mA
Voltage - Forward (Vf) (Typ):	1.4V
Current - DC Forward (If) (Max):	40 mA
Vce Saturation (Max):	-
Operating Temperature:	0°C ~ 70°C
Mounting Type:	Through Hole
Package / Case:	8-DIP (0.300", 7.62mm)
Supplier Device Package:	8-DIP
