MOC8104-X016

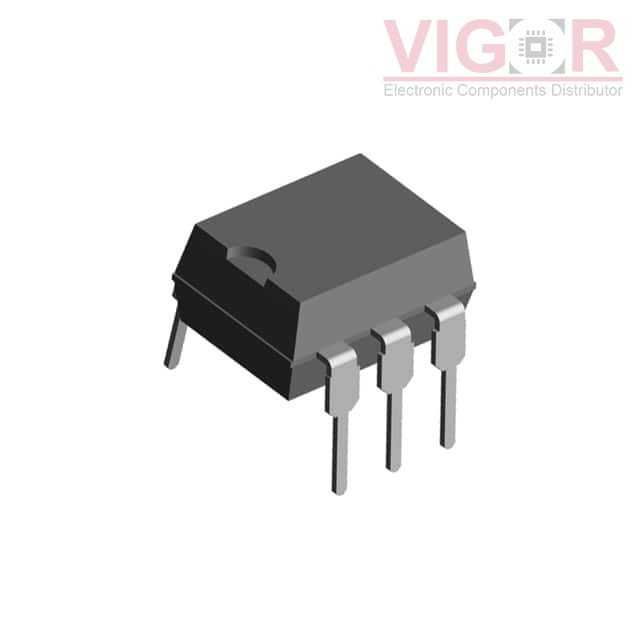

Product image
Product thumb
Part No :

MOC8104-X016

Manufacturer
Vishay / Semiconductor - Opto Division
VIGOR # :

4083091

Description
OPTOISO 5.3KV TRANSISTOR 6DIP
Catalog
Optoisolators - Transistor, Photovoltaic Output
DataSheet
MOC8104-X016 PDF
Country of origin
-
Date code
-
ads
MOC8104-X016 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Number of Channels:1
Voltage - Isolation:5300Vrms
Current Transfer Ratio (Min):160% @ 10mA
Current Transfer Ratio (Max):256% @ 10mA
Turn On / Turn Off Time (Typ):3µs, 2.3µs
Rise / Fall Time (Typ):2µs, 2µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):30V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.25V
Current - DC Forward (If) (Max):60 mA
Vce Saturation (Max):400mV
Operating Temperature:-55°C ~ 100°C
Mounting Type:Through Hole
Package / Case:6-DIP (0.300", 7.62mm)
Supplier Device Package:6-DIP
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 1948
Shipped from
HK warehouse
Expected Shipping Date
Dec 27 - Dec 31 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.77 $0.77
10 $0.60 $6.01
25 $0.50 $12.45
100 $0.43 $42.93
250 $0.38 $94.44
500 $0.33 $163.12
2000 $0.24 $480.76
6000 $0.23 $1 390.80

Current price of MOC8104-X016 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
