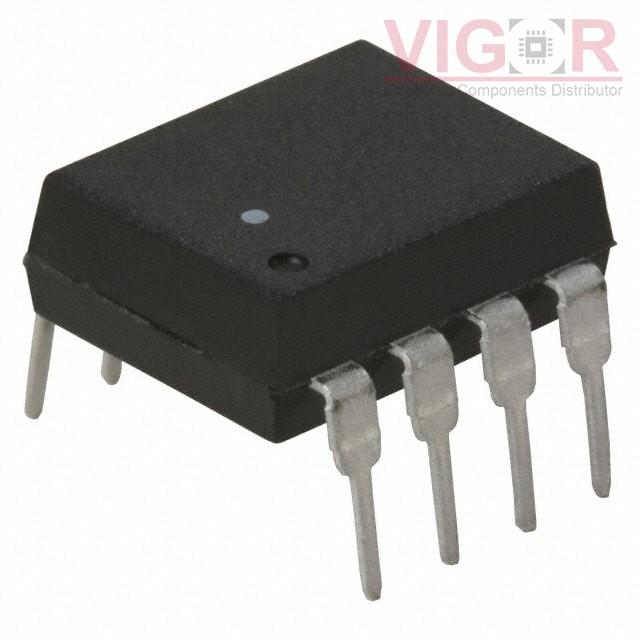

HCNW4503

Part No :: HCNW4503

Manufacturer: Broadcom

VIGOR # :: 4083171

Description: OPTOISOLATOR 5KV TRANSISTOR 8DIP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: HCNW4503 PDF

Country of origin: -

Date code: -

HCNW4503 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	15% @ 16mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	1µs, 1µs (Max)
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	20V
Current - Output / Channel:	8mA
Voltage - Forward (Vf) (Typ):	1.68V
Current - DC Forward (If) (Max):	25 mA
Vce Saturation (Max):	-
Operating Temperature:	-55°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	8-DIP (0.400", 10.16mm)
Supplier Device Package:	8-DIP
