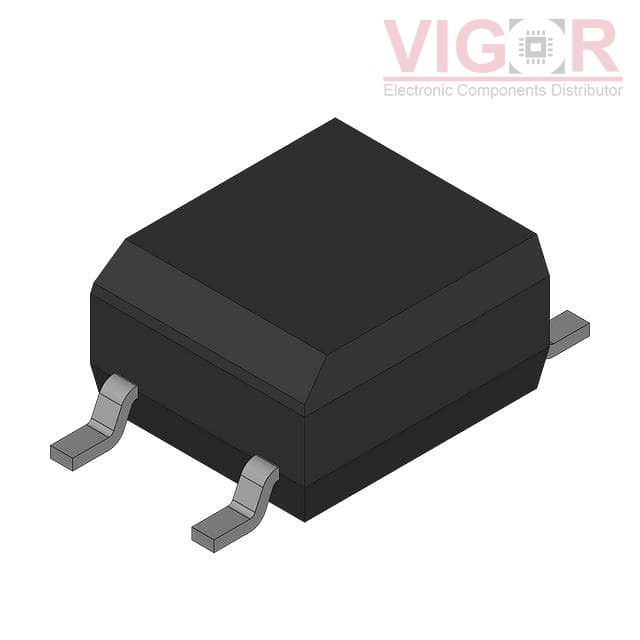

HMA2701BR1

Part No :: HMA2701BR1

Manufacturer: VIGOR

Description: TRANSISTOR OUTPUT OPTOCOUPLER

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: HMA2701BR1 PDF

Availability: 2500 pieces

Unit Price: ~~$0.10000~~

Current price of HMA2701BR1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HMA2701BR1 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Number of Channels:	1
Voltage - Isolation:	3750Vrms
Current Transfer Ratio (Min):	80% @ 5mA
Current Transfer Ratio (Max):	160% @ 5mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	3µs, 3µs
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	40V
Current - Output / Channel:	80mA
Voltage - Forward (Vf) (Typ):	1.3V (Max)
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	4-SMD, Gull Wing
Supplier Device Package:	4-SMD
