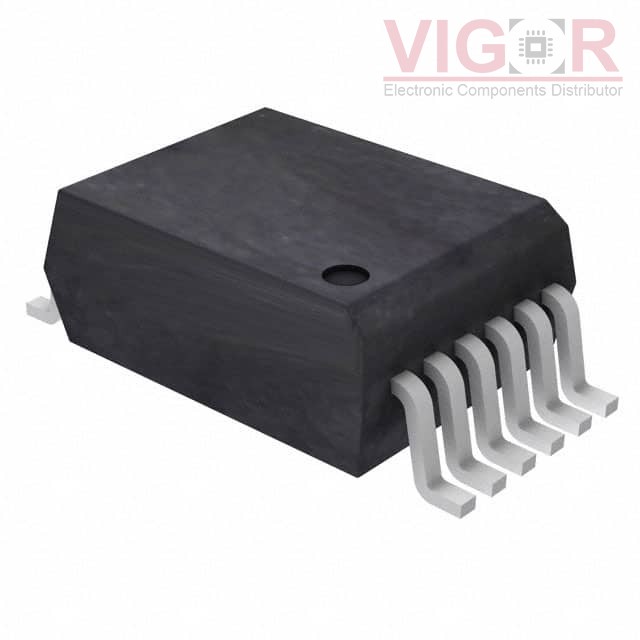

ACFL-5212T-560E

Part No :: ACFL-5212T-560E

Manufacturer: Broadcom

VIGOR # :: 4083380

Description: OPTOISO 5KV 2CH TRANS

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: ACFL-5212T-560E PDF

Country of origin: -

Date code: -

ACFL-5212T-560E Specifications

Type	Description
Series:	Automotive, AEC-Q100, R²Coupler™
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Channels:	2
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	32% @ 10mA
Current Transfer Ratio (Max):	100% @ 10mA
Turn On / Turn Off Time (Typ):	20µs, 20µs (Max)
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	20V
Current - Output / Channel:	8mA
Voltage - Forward (Vf) (Typ):	1.5V
Current - DC Forward (If) (Max):	20 mA
Vce Saturation (Max):	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	12-BSOP (0.295", 7.50mm Width)
Supplier Device Package:	12-SO
