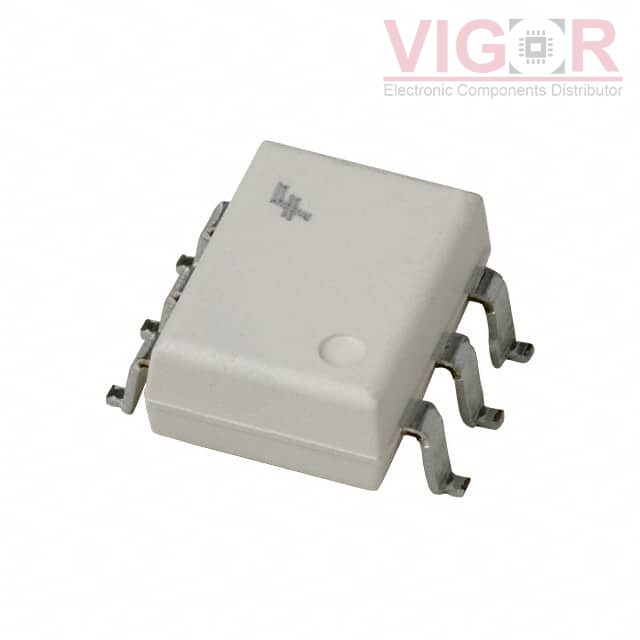

H11AG1SM

Part No :: H11AG1SM

Manufacturer: VIGOR

VIGOR # :: 4083405

Description: TRANSISTOR OUTPUT OPTOCOUPLER, 7

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: H11AG1SM PDF

Country of origin: -

Date code: -

H11AG1SM Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	4170Vrms
Current Transfer Ratio (Min):	100% @ 1mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	5µs, 5µs
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor with Base
Voltage - Output (Max):	30V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.25V
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	400mV
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	6-SMD, Gull Wing
Supplier Device Package:	6-SMD
