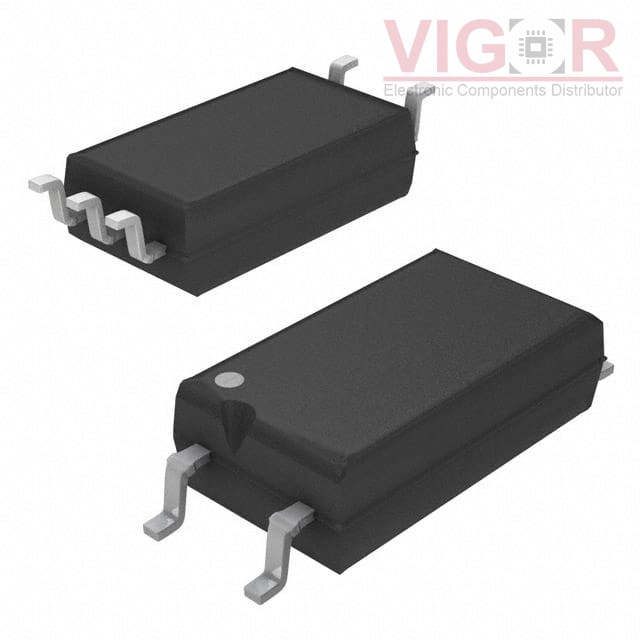

TCLT1108

Part No :: TCLT1108

Manufacturer: Vishay / Semiconductor - Opto Division

Description: OPTOISO 5KV TRANS W/BASE 6SOP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: TCLT1108 PDF

Availability: 0 pieces

Current price of TCLT1108 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TCLT1108 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	130% @ 5mA
Current Transfer Ratio (Max):	260% @ 5mA
Turn On / Turn Off Time (Typ):	6µs, 5µs
Rise / Fall Time (Typ):	3µs, 4.7µs
Input Type:	DC
Output Type:	Transistor with Base
Voltage - Output (Max):	80V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.25V
Current - DC Forward (If) (Max):	60 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.295", 7.50mm Width), 5 Leads
Supplier Device Package:	6-SOP, 5 Pin

Please confirm the specifications of the products when ordering.
