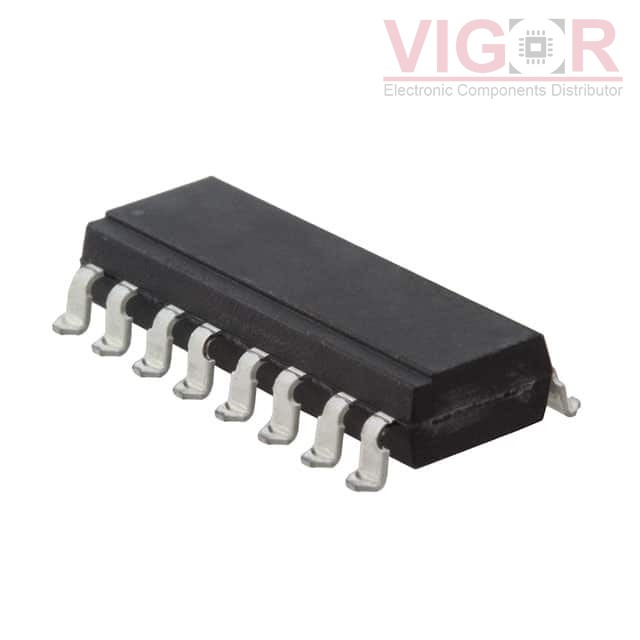

ACPL-844-360E

Part No :: ACPL-844-360E

Manufacturer: Broadcom

VIGOR # :: 4083689

Description: OPTOISOLATOR 5KV 4CH TRANS 16SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: ACPL-844-360E PDF

Country of origin: -

Date code: -

ACPL-844-360E Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	4
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	20% @ 1mA
Current Transfer Ratio (Max):	300% @ 1mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	4µs, 3µs
Input Type:	AC, DC
Output Type:	Transistor
Voltage - Output (Max):	70V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	200mV
Operating Temperature:	-30°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	16-SMD, Gull Wing
Supplier Device Package:	16-SMD
