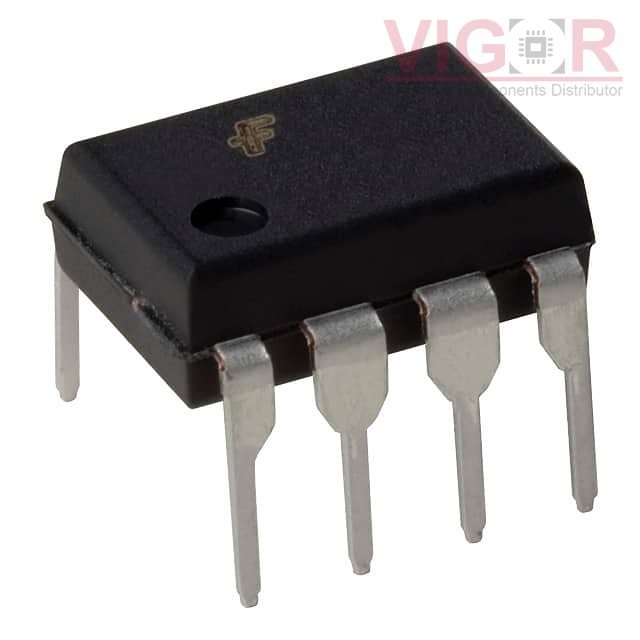

HCPL4503M

Part No :: HCPL4503M

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: OPTOISO 5KV TRANS W/BASE 8DIP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: HCPL4503M PDF

Availability: 1244 pieces

Unit Price: ~~$2.42000~~

Current price of HCPL4503M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HCPL4503M Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	19% @ 16mA
Current Transfer Ratio (Max):	50% @ 16mA
Turn On / Turn Off Time (Typ):	250ns, 260ns
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor with Base
Voltage - Output (Max):	20V
Current - Output / Channel:	8mA
Voltage - Forward (Vf) (Typ):	1.45V
Current - DC Forward (If) (Max):	25 mA
Vce Saturation (Max):	-
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	8-DIP (0.300", 7.62mm)
Supplier Device Package:	8-DIP
