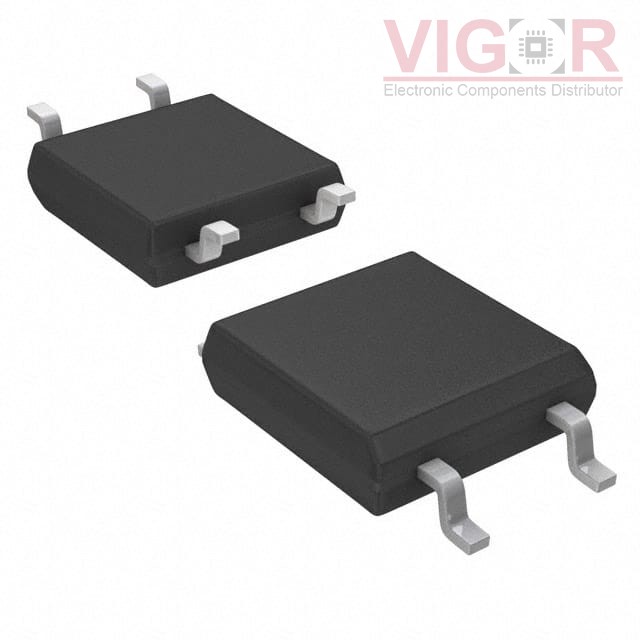

SFH690DT

Part No :: SFH690DT

Manufacturer: Vishay / Semiconductor - Opto Division

Description: OPTOISOLATOR 3.75KV TRANS 4SOP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: SFH690DT PDF

Availability: 3631 pieces

Unit Price: ~~$0.69000~~

Current price of SFH690DT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SFH690DT Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	3750Vrms
Current Transfer Ratio (Min):	200% @ 5mA
Current Transfer Ratio (Max):	400% @ 5mA
Turn On / Turn Off Time (Typ):	5µs, 3µs
Rise / Fall Time (Typ):	3µs, 4µs
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	70V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.15V
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	4-SMD, Gull Wing
Supplier Device Package:	4-SOP (2.54mm)
