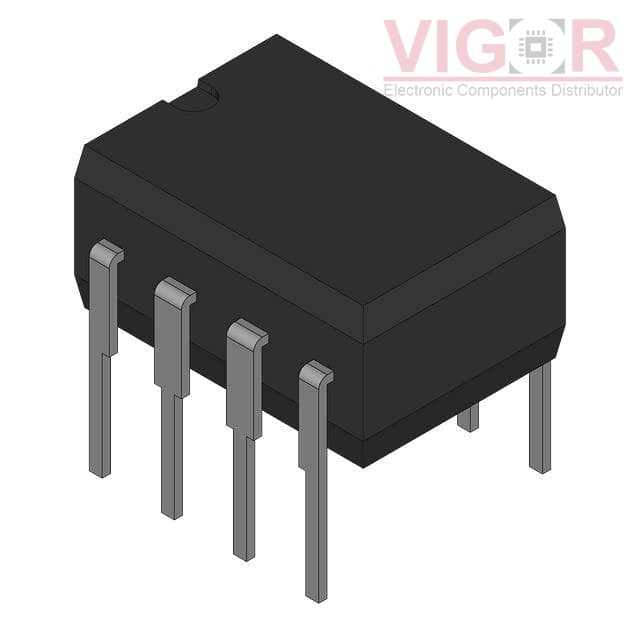

HCPL4502V

Part No :: HCPL4502V

Manufacturer: VIGOR

VIGOR # :: 4083783

Description: LOGIC IC OUTPUT OPTOCOUPLER

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: HCPL4502V PDF

Country of origin: -

Date code: -

HCPL4502V Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Number of Channels:	1
Voltage - Isolation:	2500Vrms
Current Transfer Ratio (Min):	19% @ 16mA
Current Transfer Ratio (Max):	50% @ 16mA
Turn On / Turn Off Time (Typ):	450ns, 300ns
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor with Base
Voltage - Output (Max):	20V
Current - Output / Channel:	8mA
Voltage - Forward (Vf) (Typ):	1.45V
Current - DC Forward (If) (Max):	25 mA
Vce Saturation (Max):	-
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	8-DIP (0.300", 7.62mm)
Supplier Device Package:	8-DIP
