TCLT1014

Part No :: TCLT1014

Manufacturer: Vishay / Semiconductor - Opto Division

VIGOR # :: 4084095

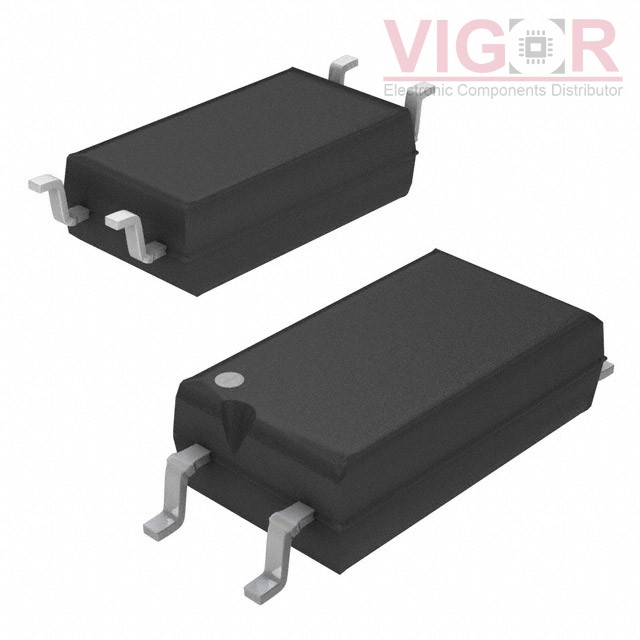

Description: OPTOISOLATOR 5KV TRANS SOP-6L4

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: TCLT1014 PDF

Country of origin: -

Date code: -

TCLT1014 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	160% @ 10mA
Current Transfer Ratio (Max):	320% @ 10mA
Turn On / Turn Off Time (Typ):	6µs, 5µs
Rise / Fall Time (Typ):	3µs, 4.7µs
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	70V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.25V
Current - DC Forward (If) (Max):	60 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-55°C ~ 110°C
Mounting Type:	Surface Mount
Package / Case:	4-SMD, Gull Wing
Supplier Device Package:	4-LSOP (2.54mm)
