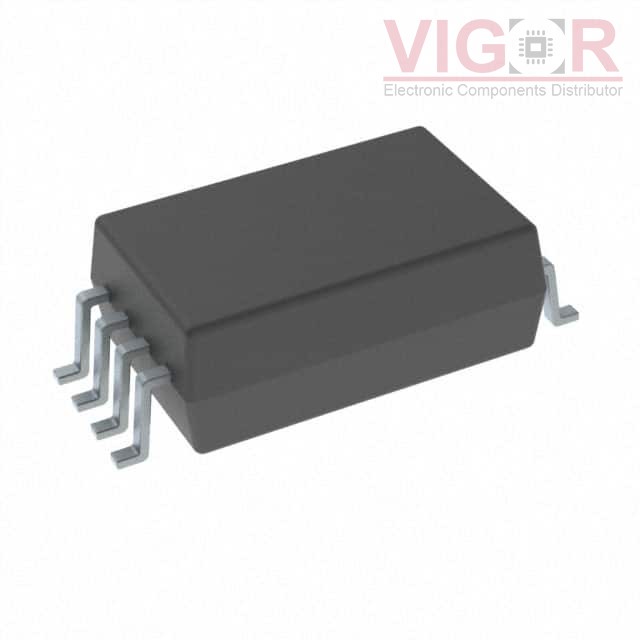

ACNU-250L-500E

Part No :: ACNU-250L-500E

Manufacturer: Broadcom

Description: 11MM OPTOCOUPLER (1MBD)

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: ACNU-250L-500E PDF

Availability: 0 pieces

Unit Price: ~~$1.78398~~

Current price of ACNU-250L-500E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ACNU-250L-500E Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	23% @ 12mA
Current Transfer Ratio (Max):	53% @ 12mA
Turn On / Turn Off Time (Typ):	700ns, 400ns
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	24V
Current - Output / Channel:	12mA
Voltage - Forward (Vf) (Typ):	1.5V
Current - DC Forward (If) (Max):	-
Vce Saturation (Max):	-
Operating Temperature:	-40°C ~ 105°C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.378", 9.60mm Width)
Supplier Device Package:	8-SO Stretched

Please confirm the specifications of the products when ordering.
