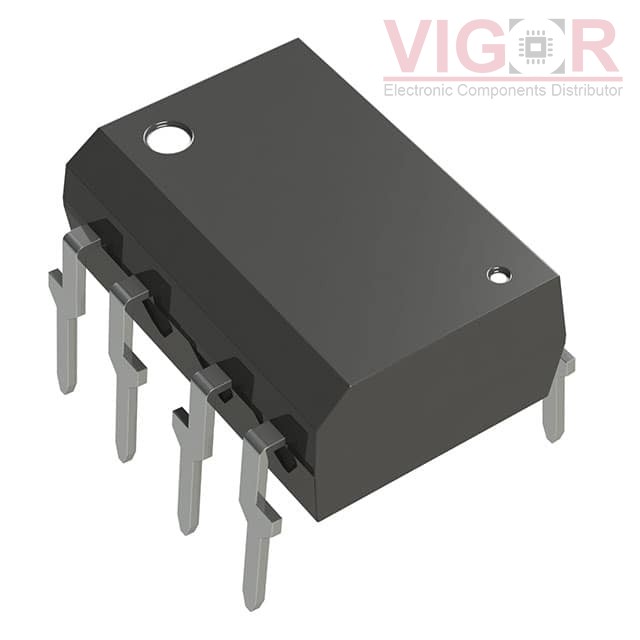

TLP759(TP1,J,F)

Part No :: TLP759(TP1,J,F)

Manufacturer: Toshiba Electronic Devices and Storage Corporation

VIGOR # :: 4084482

Description: PHOTOCOUPLER LOGIC 8DIP GW

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: TLP759(TP1,J,F) PDF

Country of origin: -

Date code: -

TLP759(TP1,J,F) Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	20% @ 16mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	200ns, 300ns
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	20V
Current - Output / Channel:	8mA
Voltage - Forward (Vf) (Typ):	1.65V
Current - DC Forward (If) (Max):	25 mA
Vce Saturation (Max):	-
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	8-DIP (0.300", 7.62mm)
Supplier Device Package:	8-DIP
