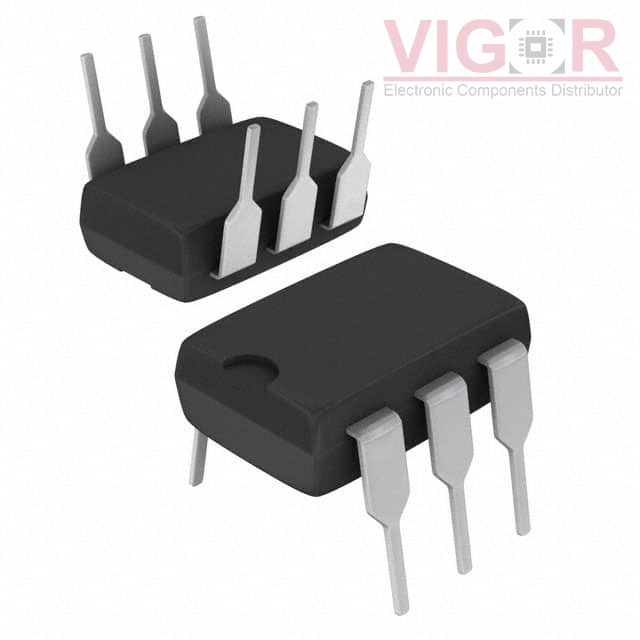

TCDT1101

Part No :: TCDT1101

Manufacturer: Vishay / Semiconductor - Opto Division

Description: OPTOISOLATOR 5KV TRANS 6DIP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: TCDT1101 PDF

Availability: 1988 pieces

Unit Price: ~~$0.62000~~

Current price of TCDT1101 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TCDT1101 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	40% @ 10mA
Current Transfer Ratio (Max):	80% @ 10mA
Turn On / Turn Off Time (Typ):	11µs, 7µs
Rise / Fall Time (Typ):	7µs, 6.7µs
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	32V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.25V
Current - DC Forward (If) (Max):	60 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-55°C ~ 110°C
Mounting Type:	Through Hole
Package / Case:	6-DIP (0.300", 7.62mm)
Supplier Device Package:	6-DIP
