HCPL-817-30AE

Part No :: HCPL-817-30AE

Manufacturer: Broadcom

VIGOR # :: 4084840

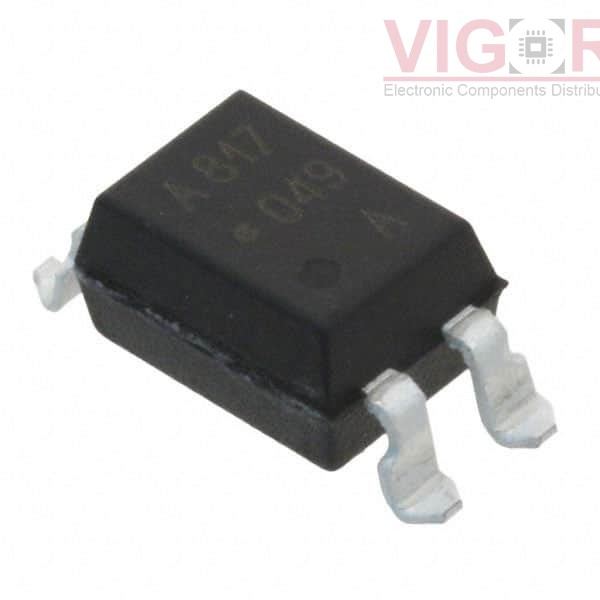

Description: OPTOISOLATOR 5KV TRANSISTOR 4SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: HCPL-817-30AE PDF

Country of origin: -

Date code: -

HCPL-817-30AE Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	80% @ 5mA
Current Transfer Ratio (Max):	160% @ 5mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	4µs, 3µs
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	70V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	200mV
Operating Temperature:	-30°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	4-SMD, Gull Wing
Supplier Device Package:	4-SMD
