TLP2703(TP,E

Part No :: TLP2703(TP,E

Manufacturer: Toshiba Electronic Devices and Storage Corporation

VIGOR # :: 4085029

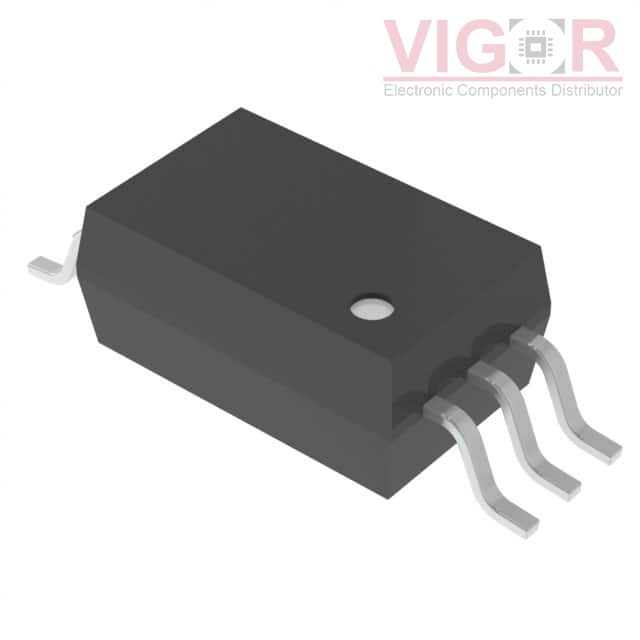

Description: OPTOISO 5KV DARLINGTON SO6L

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: TLP2703(TP,E PDF

Country of origin: -

Date code: -

TLP2703(TP,E Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	900% @ 500µA
Current Transfer Ratio (Max):	8000% @ 500µA
Turn On / Turn Off Time (Typ):	330ns, 2.5µs
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Darlington
Voltage - Output (Max):	18V
Current - Output / Channel:	80mA
Voltage - Forward (Vf) (Typ):	1.47V
Current - DC Forward (If) (Max):	20 mA
Vce Saturation (Max):	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	6-SO
