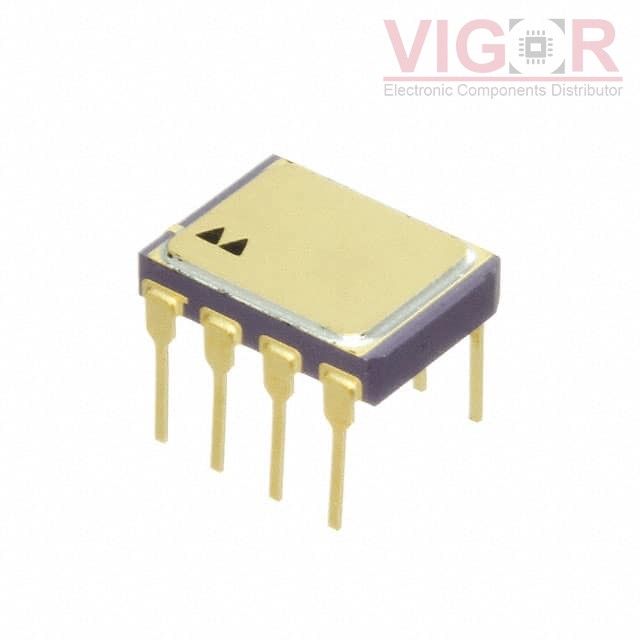

ACPL-5700L

Part No :: ACPL-5700L

Manufacturer: Broadcom

Description: OPTOISO 1.5KV DARLINGTON 8-DIP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: ACPL-5700L PDF

Availability: 41 pieces

Unit Price: ~~$88.04000~~

Current price of ACPL-5700L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ACPL-5700L Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	1500VDC
Current Transfer Ratio (Min):	200% @ 5mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	2µs, 6µs
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Darlington
Voltage - Output (Max):	20V
Current - Output / Channel:	40mA
Voltage - Forward (Vf) (Typ):	1.4V
Current - DC Forward (If) (Max):	10 mA
Vce Saturation (Max):	-
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	8-CDIP (0.300", 7.62mm)
Supplier Device Package:	8-DIP

Please confirm the specifications of the products when ordering.
