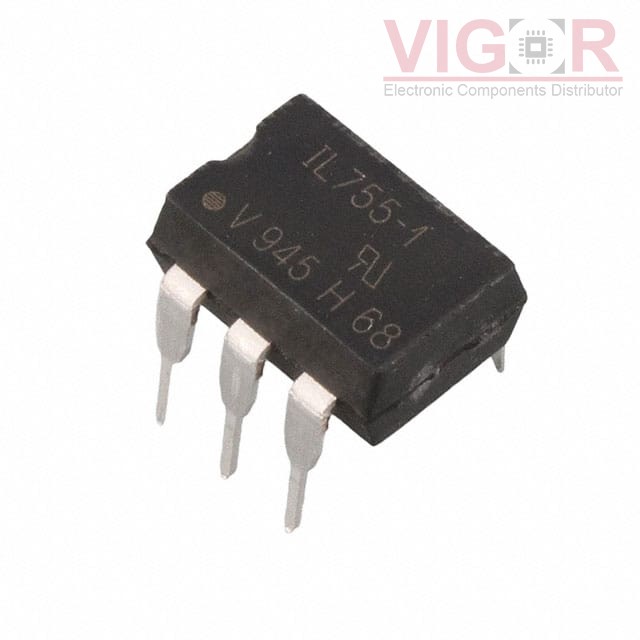

IL755-1

Part No :: IL755-1

Manufacturer: Vishay / Semiconductor - Opto Division

Description: OPTOISO 5.3KV DARL W/BASE 6DIP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: IL755-1 PDF

Availability: 1380 pieces

Unit Price: ~~$1.69000~~

Current price of IL755-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IL755-1 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5300Vrms
Current Transfer Ratio (Min):	750% @ 2mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	50µs, 50µs
Input Type:	AC, DC
Output Type:	Darlington with Base
Voltage - Output (Max):	60V
Current - Output / Channel:	-
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	60 mA
Vce Saturation (Max):	1V
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	6-DIP (0.300", 7.62mm)
Supplier Device Package:	6-DIP
