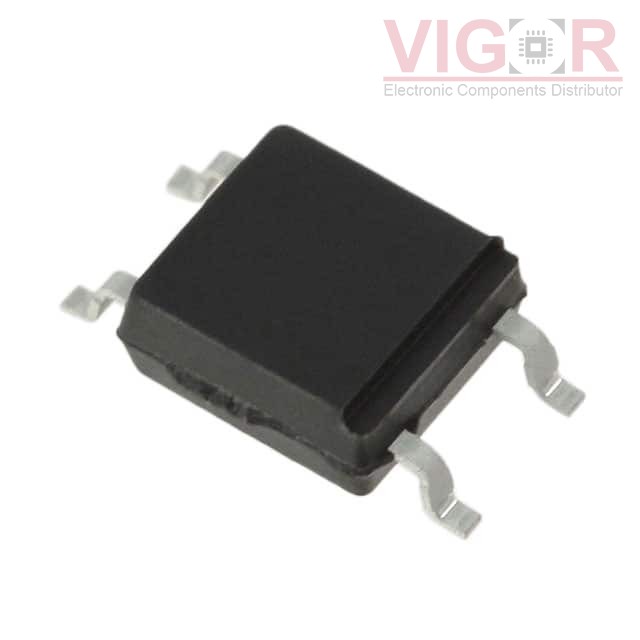

PS2761B-1-A

Part No :: PS2761B-1-A

Manufacturer: Renesas Electronics America

Description: OPTOISOLATOR 3.75KV TRANS 4SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: PS2761B-1-A PDF

Availability: 2270 pieces

Unit Price: ~~$1.38000~~

Current price of PS2761B-1-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PS2761B-1-A Specifications

Type	Description
Series:	NEPOC
Package:	Strip
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	3750Vrms
Current Transfer Ratio (Min):	50% @ 5mA
Current Transfer Ratio (Max):	400% @ 5mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	4µs, 5µs
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	70V
Current - Output / Channel:	40mA
Voltage - Forward (Vf) (Typ):	1.1V
Current - DC Forward (If) (Max):	25 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-55°C ~ 110°C
Mounting Type:	Surface Mount
Package / Case:	4-SMD, Gull Wing
Supplier Device Package:	4-SOP
