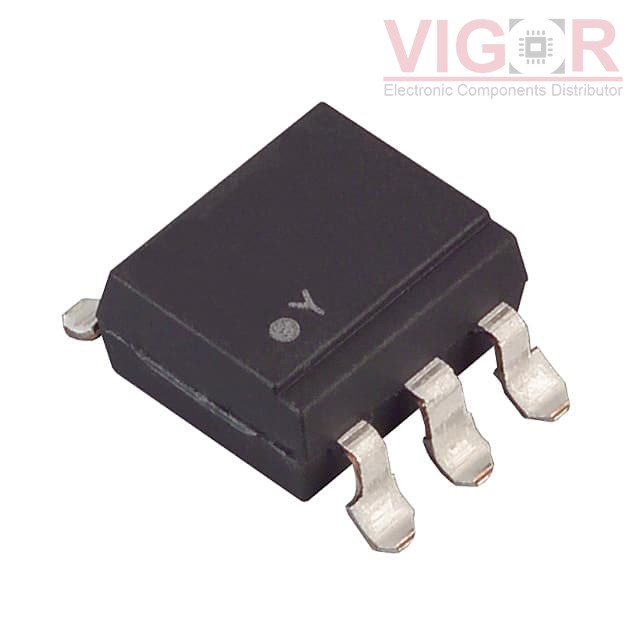

H11A4S

Part No :: H11A4S

Manufacturer: VIGOR

Description: TRANSISTOR OUTPUT OPTOCOUPLER

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: H11A4S PDF

Availability: 2684 pieces

Unit Price: ~~$0.19000~~

Current price of H11A4S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

H11A4S Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Channels:	1
Voltage - Isolation:	5300Vrms
Current Transfer Ratio (Min):	10% @ 10mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	2µs, 2µs
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor with Base
Voltage - Output (Max):	30V
Current - Output / Channel:	-
Voltage - Forward (Vf) (Typ):	1.18V
Current - DC Forward (If) (Max):	100 mA
Vce Saturation (Max):	400mV
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	6-SMD, Gull Wing
Supplier Device Package:	6-SMD
